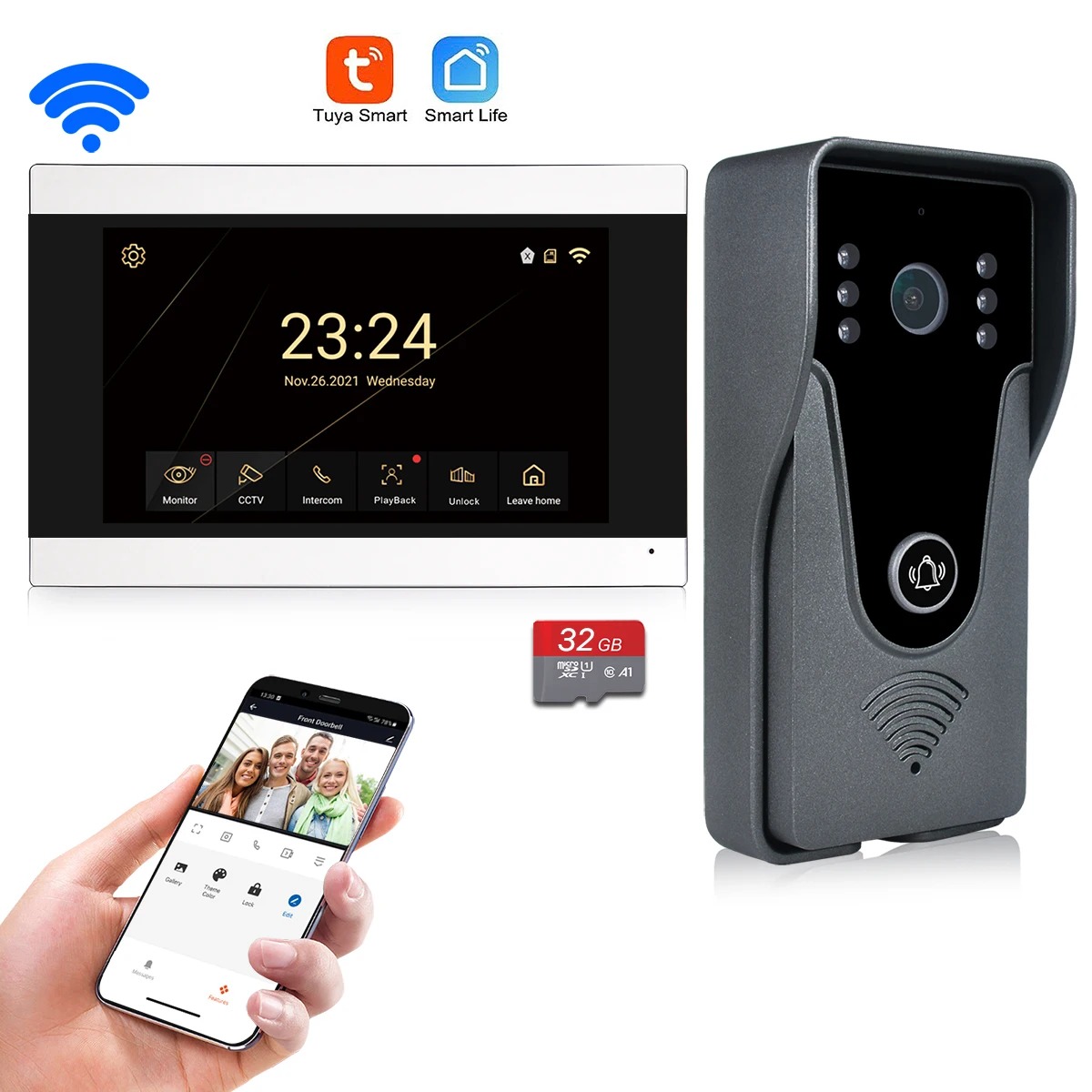

Home Video Intercom System, Never Miss Your Visitor

Wireless doorbell easily talks with visitors through the app, which supports IOS/Android smartphones and tablets. Support remote unlocking,  monitoring, Two-way communication, video recording, etc.  You can answer the door in your hand.

When visitors press the doorbell, your phone will receive the Tuya Smart APP notification which can be interconnected with a variety of monitoring  devices, you can see and hear and communicate with anyone who at indoor or outdoor, even remote unlock via your smart phone in everywhere.



Phone is the Key:

Answer The Door In Your Hands

Get alerts on your phone when visitor press the doorbell, you can see, hear and speak to people(like courier) as if you are home, never miss any visitor.It is convenient for elder or people with reduced mobility to open the door.

Automatic Recording, Motion Detection:

1080P camera with 120º wide view angle, Visitors at the door can be seen clearly.

Camera built-in microphone and speaker, When visitors press the doorbell or motion detect is triggered, doorbell camera will Automatically record videos or snapshot pictures and save them in monitor micro SD card.



Rainproof and Night vision

IP65 waterproof design,work stable in rainy,cloudy,cold and snow day. Built with 1080p HD camera, anti-oxidation aluminium alloy front panel,Rainproof, Dustproof,and Anti-vandal. IR LED for better night vision.  (Note: Don’t install the Door Camera in a place exposed to direct sunlight or prolonged rain)

7-inch full touch screen

With 1080P resolution, get sharper images and videos on the monitor and APP, Full touch screen easier operation and better user experience.

Product Features:

Monitor:

• Screen: 7 inch TFT-LCD touch screen
• Resolution: 1024 x 680
• Ring: 7-chord melody rings
• Volume,color: Adjustable
• Connection way: 4-wires/WIFI tuya solution
• Panel Material: Acrylic/ABS cover
• Installation: Surface mounting
• Input voltage:AC 100-240V 50/60Hz
• Working voltage:DC 14.5V, 1.0A
• Size: 7.9×5.1×0.9 inch / 200x130x23 mm

Camera:

• Horizontal resolution: 2MP 1080P
• Image sensor:Colorful CMOS sensor
• Sensor Size:1/4,Visual angle:120 degrees
• IR Led: 6pcs, auto on/off
• Panel Material: Aluminum Alloy/Acrylic
• Installation: Surface mounting
• Simple 4 – wire connection
• Power: from indoor monitor
• Work with all 12V electronic locks
• Size: 4.9×2.2×2 inch / 125x56x51 mm

Easy to Install

Please note: the wifi video intercom system not mean it’s don’t need any cable. The monitor support WIFI network,but the indoor monitor and doorbell is Wired Connect.

1. Use RVV-4 cable or Cat 5/6 ethernet cable, network cable to connect the doorbell to the Monitor (terminal cables are included).

In addition to the wired connection between the doorbell camera and the monitor of a traditional video intercom doorbell system, new wireless connection function has been added. The monitor has a built-in antenna, which can be connected with wifi through wireless signal. The cell phone can control the doorbell system remotely through TUYA/Smart life APP.

wiring diagram:

2. Monitor configuration WiFi, just open the configuration menu, select 2.4G WiFi, enter the WiFi password to connect.
3. Once the monitor is configured with WiFi, the phone downloads the free Tuya Smart/Smart Life APP, which automatically searches for the device and clicks Add. It can also be added by scanning the code on the monitor.



Packing includes:

• 1 x Outdoor camera
• 1 x Indoor monitor
• 1 x Power supply
• 1 x 32G Micro SD card
• 2 x 4-core short wire (Approx. 5cm)
• 1 x 3-core short wire (Approx. 5cm)
• 1 x Bag screws
• 1 x User manual
